Welltech control system

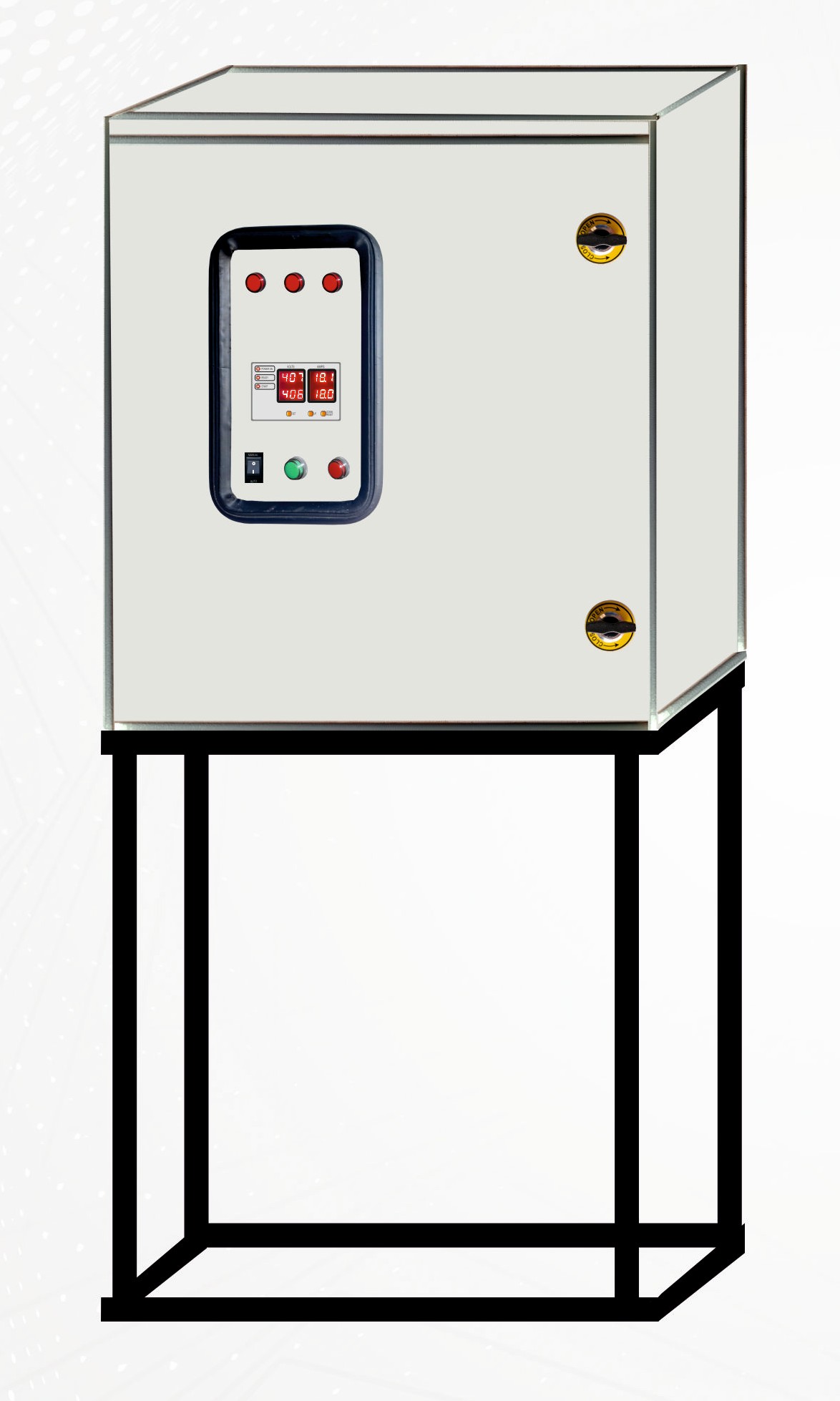

three phase outdoor panel-DOl

Model  : Outdoor  Panel

Range: D.O.L-2 HP to 50 HP

star delta-7.5 up to 200 HP

content

  • 3 pole Contactor
  • PCR-10 Pump Controller
  • 440/12 V Control Transformer
  • 100/30 ma CT Coil


Features

  • Single Phasing Preventor
  • Phase Reversal Protection
  • Un Balanced Voltage Protection
  • Hi Voltage Protection
  • Low Voltage Protection
  • Overload Protection
  • Dry Run Protection
  • Rotor Loc Protection
  • Cable Open trip
  • 2 Voltage Display
  • 2 Ampere Display
  • Cyclic Timer Function
  • Lever Controller By Float

three phase outdoor panel-Star Delta

Model  : Outdoor  Panel

Range: Star delta-7.5 up to 200 HP

content

  • 3 pole Contactor
  • PCR-10 Pump Controller
  • 440/12 V Control Transformer
  • 100/30 ma CT Coil


Features

  • Single Phasing Preventor
  • Phase Reversal Protection
  • Un Balanced Voltage Protection
  • Hi Voltage Protection
  • Low Voltage Protection
  • Overload Protection
  • Dry Run Protection
  • Rotor Loc Protection
  • Cable Open trip
  • 2 Voltage Display
  • 2 Ampere Display
  • Cyclic Timer Function
  • Lever Controller By Float
